A two-car garage can run from a weekend of snapping interlocking floor tiles together to a $55,000 custom build with a hydraulic lift that demands ceiling height most standard garages do not have.

Every idea here assumes both cars still fit inside, so the real question is whether you need the space to keep working as parking while you add function.

[link-whisper-related-posts]

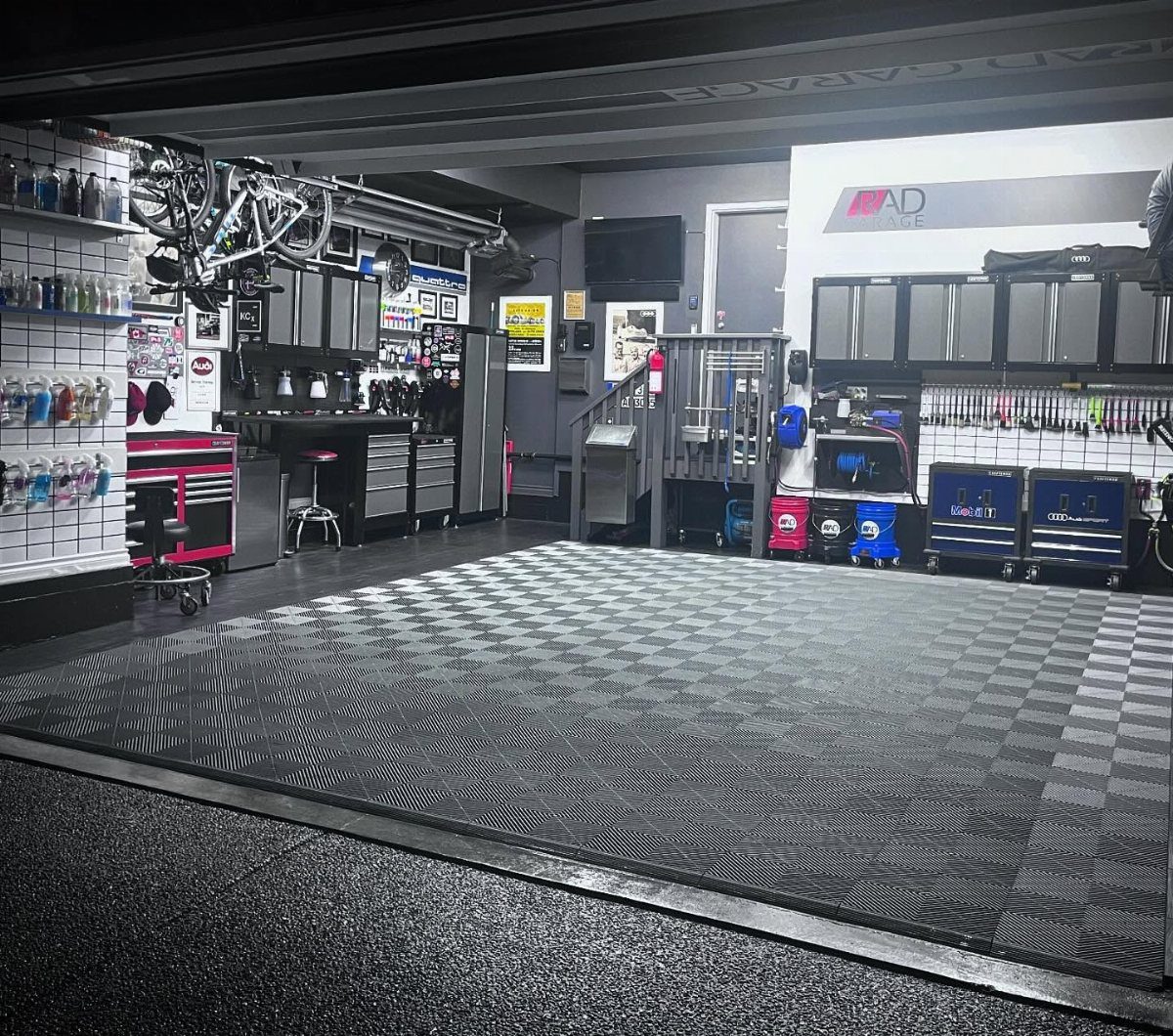

1. Workshop Space

A workshop in a two-car garage only works if you can still park both cars.

Benches and cabinets pushed to the back wall, tools on rack systems above, and a checkered tile floor left open for vehicle space keep the garage working as both shop and parking.

I would start by marking out clearance zones on the concrete with painter’s tape. Swing each car door fully open, walk every path with a laundry basket or whatever you carry, and see where you bump.

Only then buy cabinets or slatwall. Overhead bike hooks work because they sit above the clearance zone; anything lower becomes a headache every time you unload groceries.

Metal tool cabinets on casters let you roll the whole workshop outside for a big project. That flexibility matters more than built-ins when Saturday is your only free day.

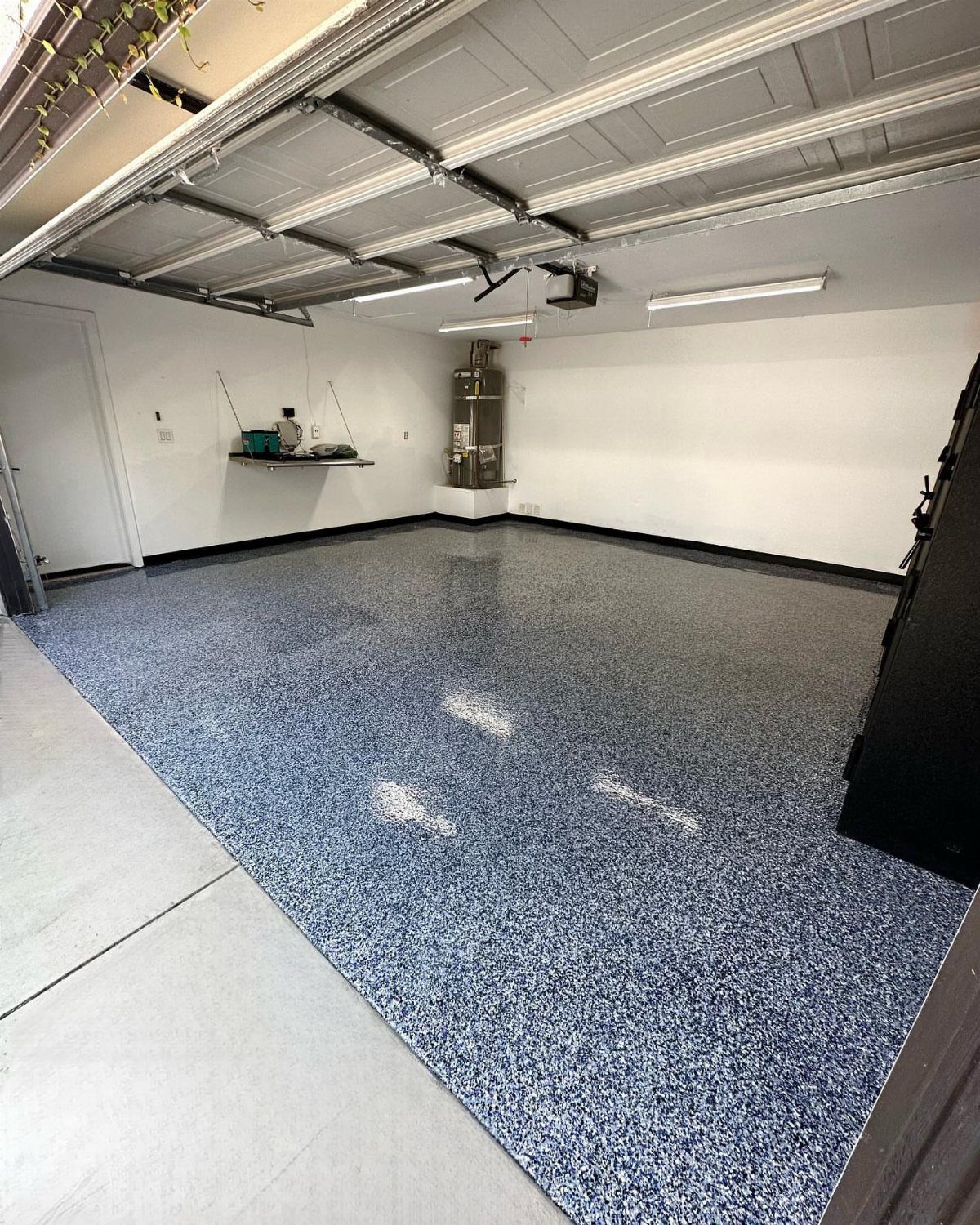

2. Polyaspartic Coatings

Bare concrete turns to dust and oil stains inside 2 winters in most climates.

Polyaspartic coatings came out of industrial flooring and now show up in residential garages because they cure in a day and handle hot tire pick-up better than the epoxy kits sold at big-box stores.

The blue-grey-white fleck is a standard chip blend broadcast into the wet coating.

You can choose warmer tones, but light colors reflect light and make the space feel larger. Professional installation costs more than most garage projects; DIY kits exist but the prep work is brutal and the warranty usually requires a pro.

The water heater visible in the corner is a reminder to mask everything you do not want coated, including the bottom strip of walls if you ever plan to finish them later.

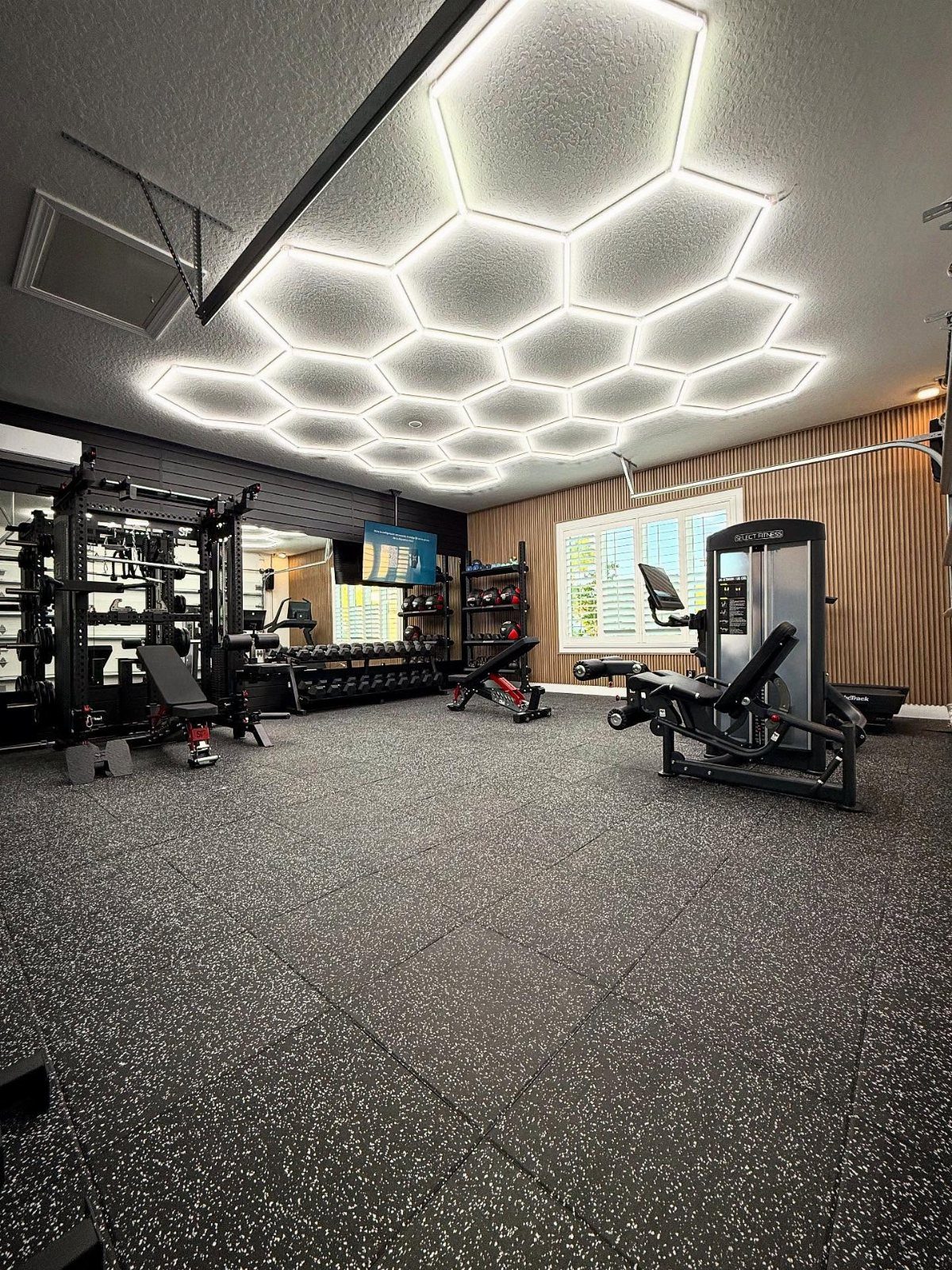

3. Gym Equipment

The speckled rubber flooring in this gym is the same type sold in horse-stall mats, which costs far less than what fitness retailers charge for "gym flooring."

The hexagonal ceiling lights are a newer LED shape that spreads light better than panels when you have equipment casting shadows everywhere.

Wall-mounted racks for weights and the squat rack bolted to that wood slat wall keep the floor clear for the second bay.

If you live where winter means road salt, the rubber traps moisture underneath. Pull the mats quarterly to let the concrete breathe, or the slab will effloresce and smell.

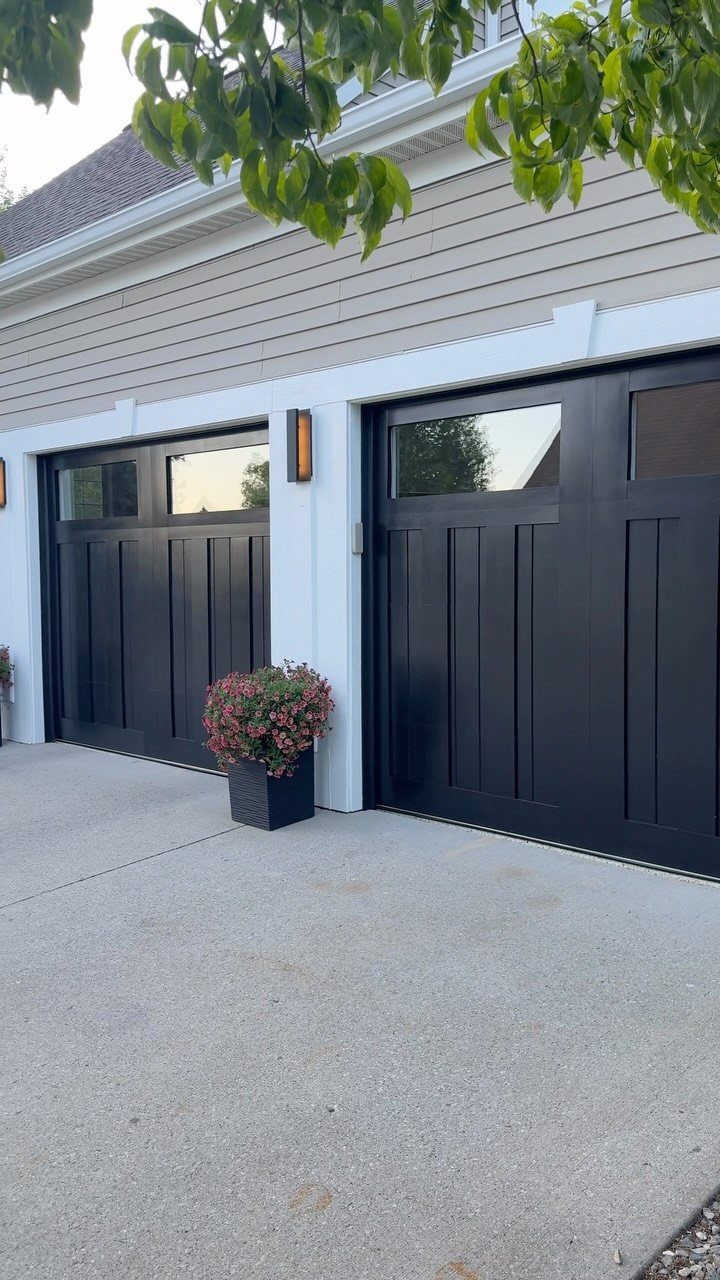

4. Stylish Garage Doors

The garage door can eat a third of what people see from the street, yet most builders default to the cheapest white non-descript panel they can order.

Black vertical-panel doors with top windows read as modern because the lines run up rather than across, and the glass strip brings in daylight without exposing everything inside.

Insulation matters if the garage attaches to the house or if you work in there past October.

R-values run from about 6 to 18; attached garages in cold climates want the high end. The windows add cost and slightly reduce insulation, but I would take that trade for not working in a cave.

Federal code requires safety sensors and a manual release; if you are replacing an older door, the opener hardware must meet current standards too. Check local wind-load requirements if you are near coastlines or tornado alley.

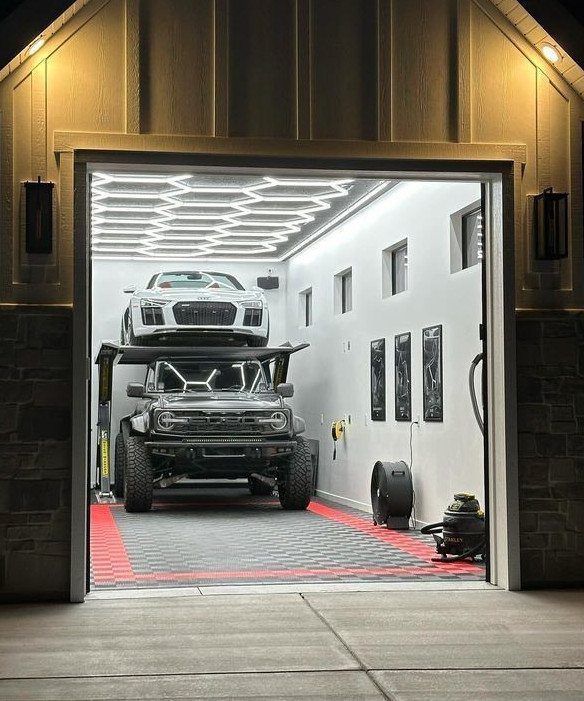

5. Hydraulic Car Lift

A hydraulic lift turns one parking bay into two by stacking cars vertically. A white sports car sitting above a dark SUV means the ceiling height must clear the lifted vehicle plus the lowered one plus the lift mechanism itself.

Most residential garages with standard ceilings cannot manage this; you want more headroom than the usual build, and extra is better.

The slab must be thick enough to handle the concentrated load: check your concrete specs against what the lift manufacturer calls for, and many installers want to see more than the minimum. Check your slab before you price the lift.

Operating the lift requires overhead clearance for the arms to swing, so the hexagonal ceiling lights visible here are recessed or mounted high enough to stay clear.

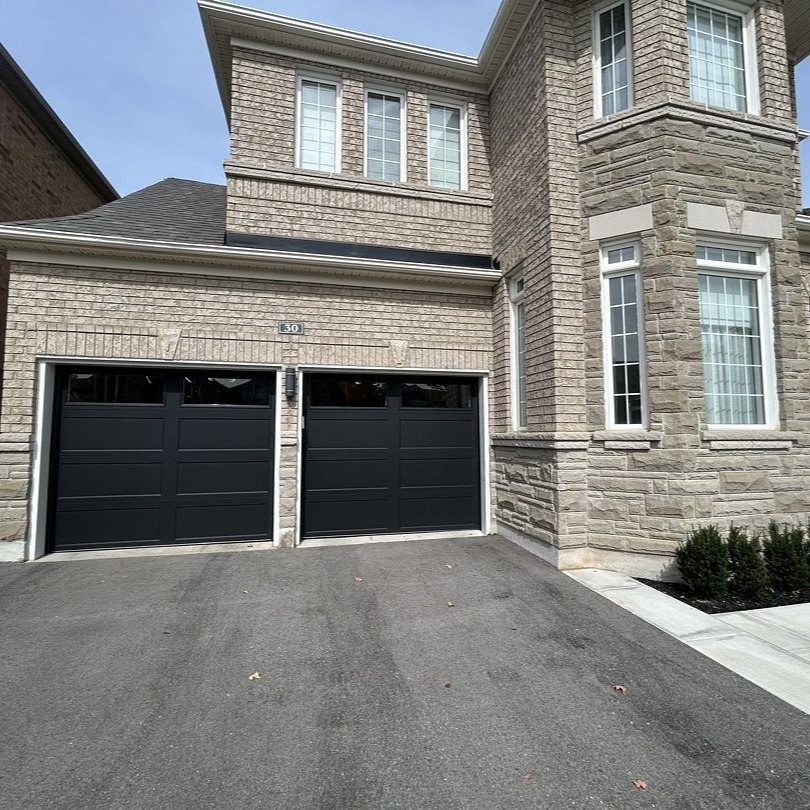

6. Separate Double Garage Bays

Two single doors instead of one double changes how you use the space. Each bay opens independently, which matters when one car leaves before the other is loaded, or when one side becomes workshop while the other stays parking.

Brick and stone exterior keeps the garage from reading as a single massive rectangle on the house face.

Single doors cost more upfront than one double door: two openers, two sets of tracks, more installation labor.

Separate bays give you flexibility and slightly better energy efficiency, since you are not opening one wide gap to outside air every time you grab a rake.

If you are building new, the framing is nearly identical; converting later means adjusting the header and possibly the electrical.

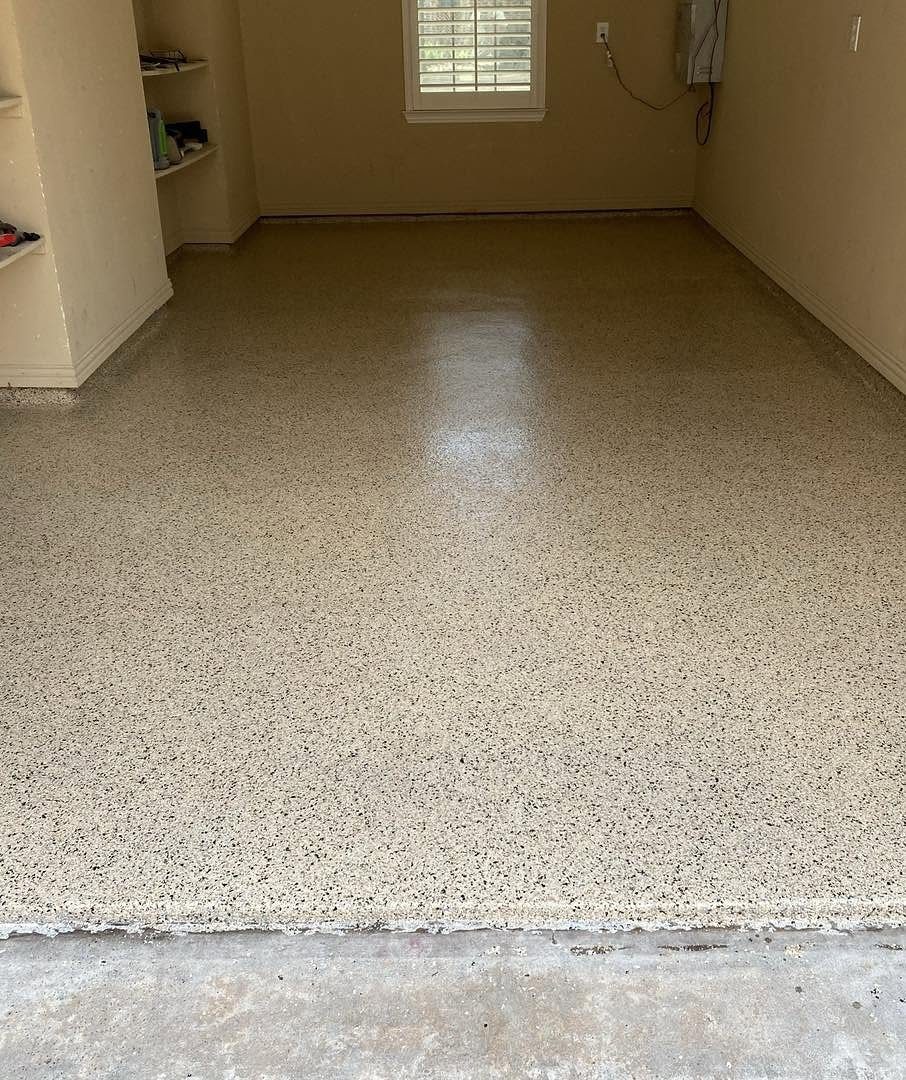

7. Speckled Epoxy Flooring

The beige and black chip blend here is warmer than the blue-grey-white mix that dominates most garage installs. Light colors bounce more light around, but this tone hides dust and tire marks better between cleanings.

Big-box epoxy kits fail when prep is rushed. The concrete needs acid etching or diamond grinding, oil spots lifted with degreaser, and a full day of dry time before the first coat.

Professional installs run higher but carry warranties that DIY kits lose the moment you open the bucket.

Hot tire pick-up is the real test: cheap coatings soften and peel where summer rubber sits. I would check the rated temperature ceiling before buying anything.

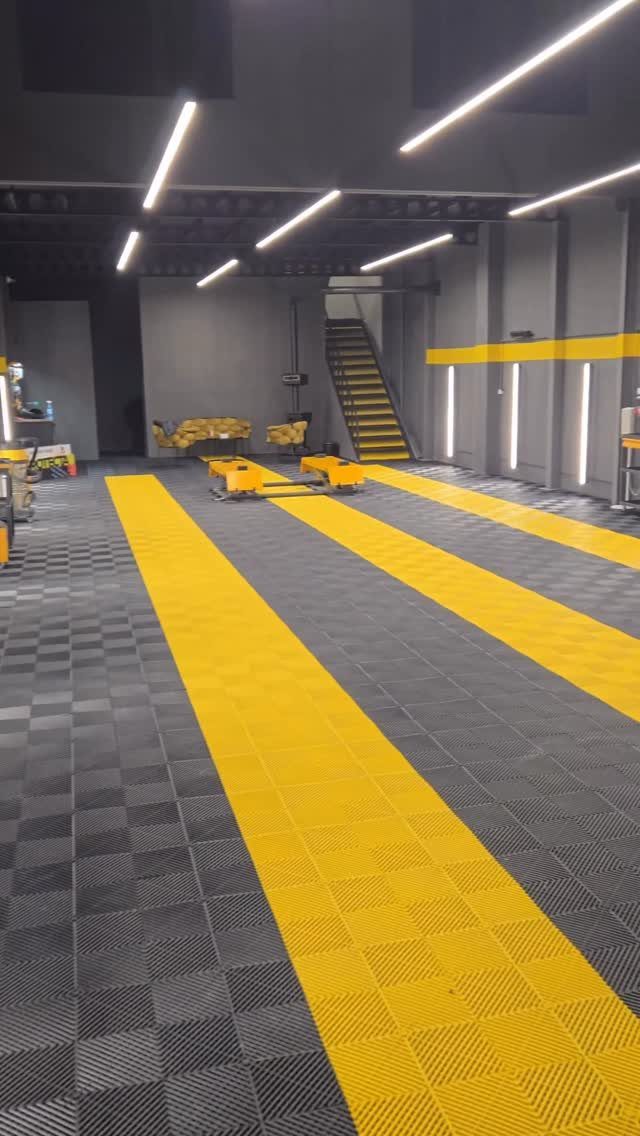

8. Interlocking Modular Floor Tiles

Vented tiles let salt and meltwater drain through instead of pooling, which matters if you park wet cars through winter.

The yellow and dark grey pattern here is SwissTrax or a similar ribbed polypropylene; the color coding lets you lay out parking zones or tool areas by sight.

No chemicals, no cure time.

Snap them together over clean concrete, cut the edges with a jigsaw where walls interfere, and lift sections later if the slab needs inspection. PSI rating should clear 5,000; anything softer indents under jack stands or a loaded toolbox.

Pull the tiles quarterly to hose the slab underneath. Trapped moisture still breeds efflorescence, same as rubber gym mats.

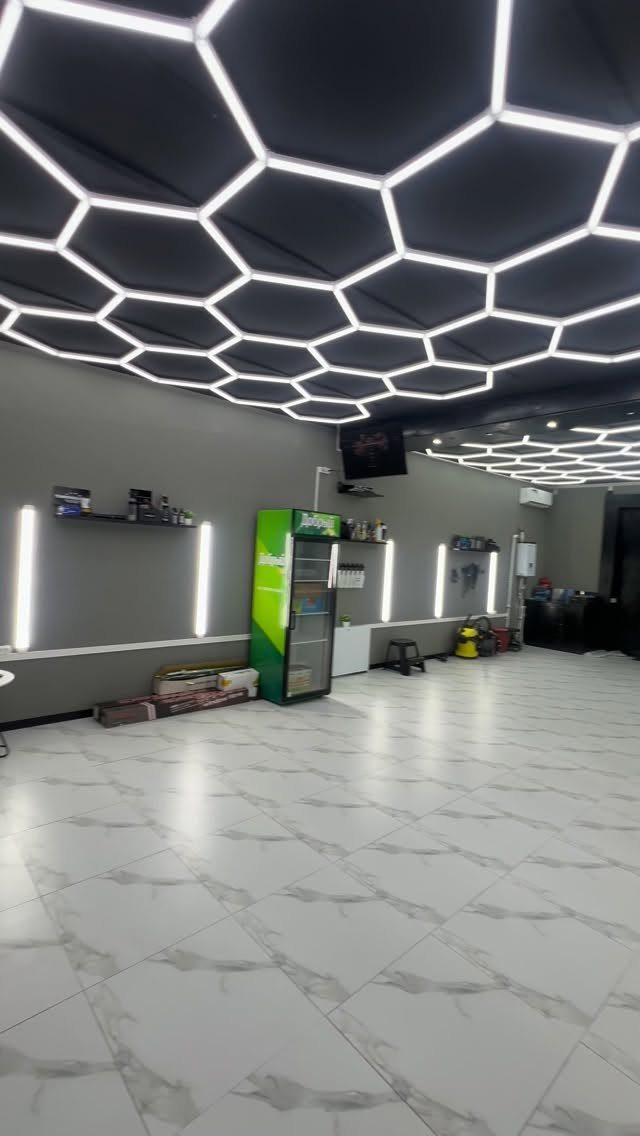

9. Honeycomb LED Ceiling Lighting

Fluorescent tubes hum, flicker in cold starts, and carry mercury disposal rules.

The hexagonal grid overhead replaces all of that with 5000K daylight white, the color temperature that makes paint swatches read true and oil leaks show up before they spread.

Each hex unit links to the next, so one switch fires the whole ceiling. The black housing in this install disappears against a dark ceiling; white housings exist if your garage is already painted light.

Recessed or surface-mounted, the profile stays thin enough to clear lift arms or tall vehicle doors. I would want at least six four-foot equivalents across a standard two-car bay, placed where equipment casts the fewest shadows.

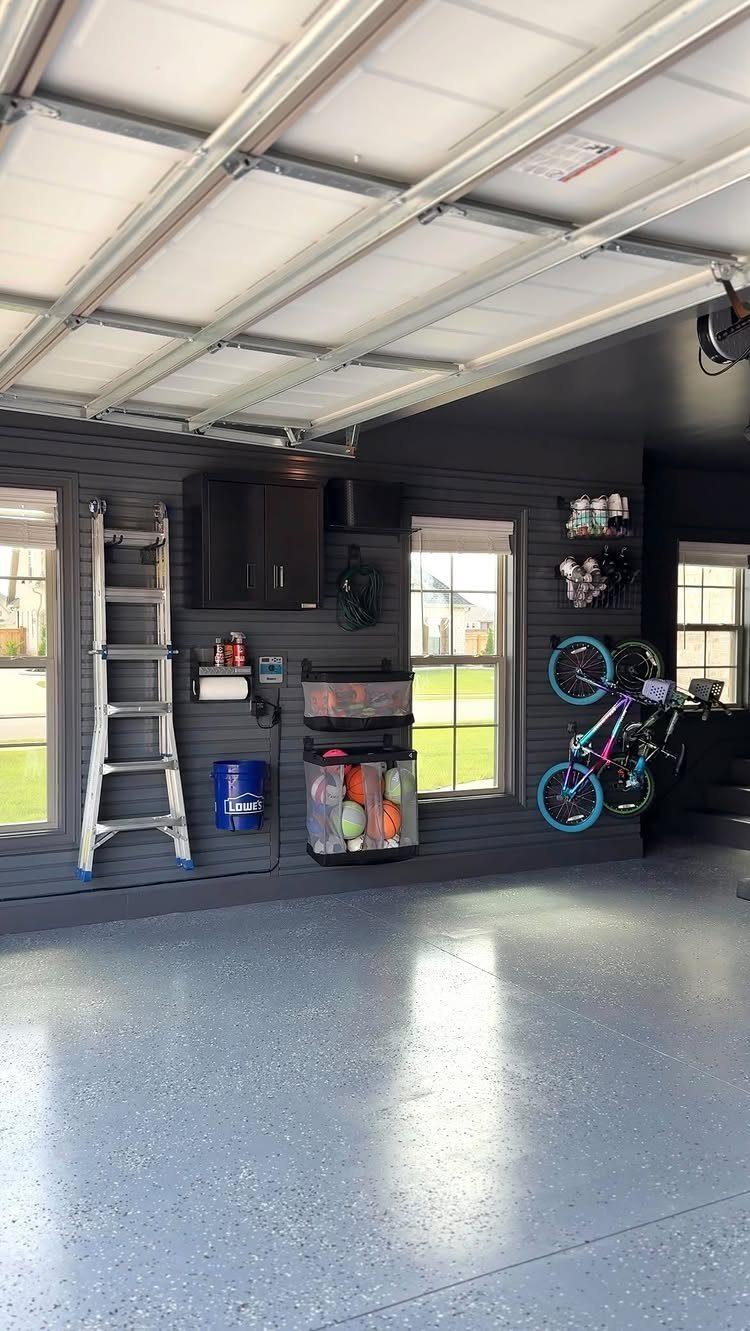

10. Wall-mounted Storage System

Dark horizontal slatwall or paneled track systems let you move bins, hooks and cabinets without drilling new holes every time your gear changes.

The setup here parks bikes overhead, corralls sports balls in mesh bins, and keeps a ladder flat against the wall.

Deep storage belongs on the rear wall, where it does not crowd door swing paths.

Side walls want shallow shelves, 12 to 16 inches deep, on the passenger side where traffic is lighter. Keep 36 inches of walkway clear around each vehicle; anything tighter means bumping paint or shuffling sideways with a load of groceries.

I would start with the slatwall, add pieces as habits reveal what you actually reach for.

Common Mistakes

High-gloss white cabinets in a garage look clean until you touch them with oily hands.

Greasy fingerprints show on every surface. I would stick with darker finishes or powder-coated metal that hides shop grime.

Drainage comes before flooring, always.

Water pooling on a new epoxy or polyaspartic surface because the slab slopes wrong or lacks a drain is a five-figure mistake. Check where water runs during a hard rain before you buy any coating.

Kitchen cabinets sag under tool weight and rot where garage humidity hits the toe kick. Metal garage cabinets with leveling feet are built exactly for garage floors that never stay flat.

Ventilation gets overlooked because it is invisible.

Running an engine or spraying chemicals in a sealed box sends fumes into the house through shared walls. A basic exhaust fan costs less than one hospital visit for solvent exposure.

Cost Considerations

The range I have seen for building a two-car garage runs $28,000 to $55,000, with custom work pushing past $70,000. Labor eats 40 to 60 percent of that total, which is why prefab kits tempt people until they see delivery and crane fees.

Foundation and slab alone run $6,000 to $10,000. Framing and roofing add $8,000 to $14,000.

Electrical and lighting land at $1,200 to $2,500, garage doors and openers at $2,000 to $4,000. Siding runs $3,000 to $7,000, insulation and drywall $2,500 to $5,000.

These are national averages from late 2025. Your county will vary.

Planning Layout

A 24 by 24 foot shell sounds generous, but wall thickness and furring strip real width down to about 22 feet 6 inches.

Two average SUVs, each about 76 inches across, eat up 12 feet 8 inches of your width, which leaves you less than 10 feet to divide into three lanes: one outside each car and the middle aisle.

I leave 3 feet of clear path on the side where I climb out.

People who shave two feet off to save money regret it. Those 48 extra square feet are what separate a garage you can work in from one you just stuff things into.

“The garage takes up so much space in terms of footprint on the site,” says Katie Yost, associate and senior designer at Bassenian Lagoni.

— Builder Online

Building Codes

Zoning rules govern where the garage sits relative to property lines, called setbacks, and how driveway access meets the street. These vary by municipality; your planning department has the actual numbers.

Attached garages count differently than detached in total square footage calculations, which affects permit fees and sometimes property tax. Foundation design changes based on this attachment and on soil conditions.
